Of all the new features in the recently-released FreeCAD 0.20 , it’s likely that the ones that will affect the most users are the improved tools in the Sketcher workbench .
New Tools: Rounded Rectangles, Centered Rectangles, and Split
Several new tools were added in FreeCAD 0.20 to speed up common workflows.

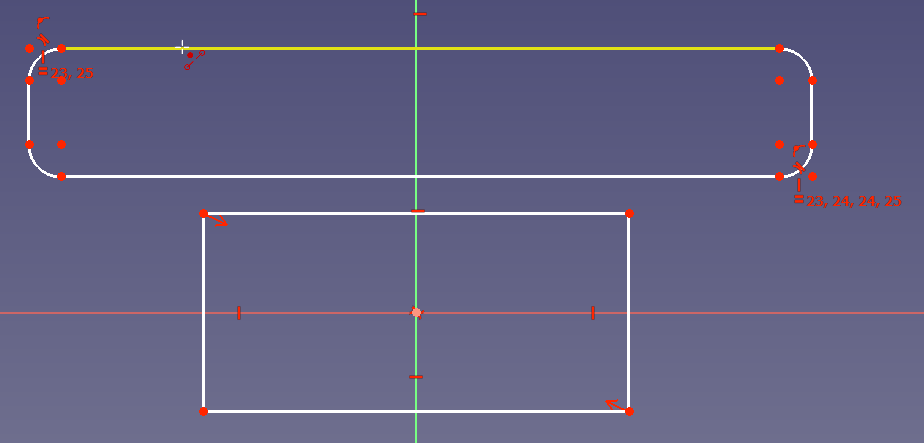

- Centered rectangles define a center point with an automatically-added symmetry constraint.
- Rounded rectangles begin with equality-constrained filleted corners.
- The split tool splits a line into two sections but attempts to maintain any previously-set constraints.
Spline Enhancements

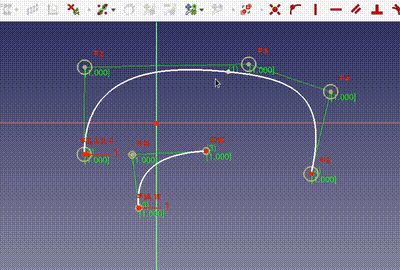

Several improvements were made to the spline interface: most notably, it is now possible to add knots to existing splines:
Additional usability improvements include directly setting the degree of the spline on creation by pressing “D” to activate a the degree dialog, and using “Backspace” to delete the last-defined pole.
Slot alignment options

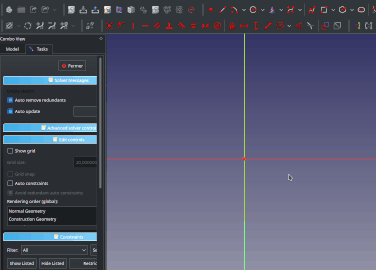

The behavior of the slot tool has changed in FreeCAD 0.20: it is now possible to define a slot that is not axis-aligned by setting the centers of its two semicircles to any point in space. These points snap as expected when drawing, and auto-constraints are added if the slot is supposed to be aligned vertically or horizontally.
Other Sketcher Improvements
There are dozens of other improvements in Sketcher for FreeCAD 0.20: you can read about many of them in the Release Notes , and discuss their usage and get help in the FreeCAD Forum .
